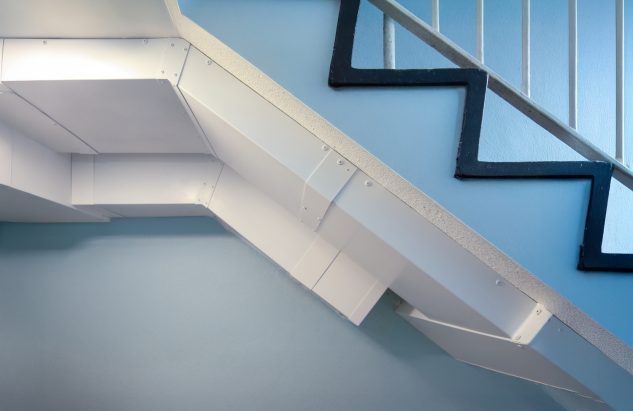

Our metal pipe boxing range has been engineered primarily to conceal external pipework, building services and other utilities, such as external cabling and distributed heating system pipes, whilst providing added protection against accidental damage, theft or vandalism.

Manufactured from 2mm or 3mm aluminium, depending on the profile dimensions, our metal boxing is available in two styles CHM is a three-sided channel profile, for securing to a single flat surface while the MXM is a two-sided 90-degree design for fixing to adjacent surfaces, such as a floor and wall.

Both products can be specified with either a visible fixing flange or with the option of using metal angle brackets or timber battens to allow concealed fixing depending on the nature of the project.

The versatility of both products enables them to conceal both vertical and horizontal pipework and our metal boxing system can be designed and fabricated to close tolerances. This helps simplify and speed the installation process, which is also supported by a range of dedicated accessories including internal & externa corners, as well as stop ends and joint covers.

All metal boxing is bespoke manufactured to the exact project specifications and dimensions and have a PPC finish, which can be selected from a wide palette of RAL colours. Lengths of up to 4000mm are available depending on the profile dimensions.

As CHM and MXM metal boxing profiles are manufactured to project specifications, all dimensions are bespoke and are dependent on individual requirements. The following information is provided as a guide only.

Product ref: CHM

Product details

Material: Aluminium
Internal angles: 90°
External radius: 4mm
Finish: Polyester powder coating (PPC)
Fixing: Visible fixing flange with options of metal angle brackets or timber battens to allow concealed fixing
Fasteners: TEK fixings (colour coded if required) sold separately. Suitable mechanical fasteners should be sourced when installing. Tamper-proof fixings are recommended
Accessories: Internal corners; external corners; stop ends; butt strap joint covers; button vents (white); access hatches

Note: All CHM products are bespoke manufactured to project dimensions. Options also include perforations, recessed fixing points, material thickness and lengths.

Download product drawings and NBS Clauses

CHM dimensions: 3 sided ‘U’ shaped metal profiles – 2mm thick
Depth (mm) Width(mm) Thickness (mm) Internal space(mm) Length (mm)
75 100 2 73×96 2.5 or 3.0
86 150 2 73×146 2.5 or 3.0
100 150 2 98×146 2.5 or 3.0
100 200 2 98×196 2.5 or 3.0
125 250 2 98×246 2.5 or 3.0
125 200 2 123×196 2.5 or 3.0
150 250 2 123×246 2.5 or 3.0
150 200 2 148×196 2.5 or 3.0
150 250 2 148×246 2.5 or 3.0
150 300 2 148×296 2.5 or 3.0
200 300 2 198×296 2.5 or 3.0

Product ref: MXM

Product details

Material: Aluminium
Internal angle: 90°
External radius: 4mm
Finish: Polyester powder coating (PPC)
Fixing: Visible fixing flange with options of metal angle brackets or timber battens to allow concealed fixing
Fasteners: TEK fixings (colour coded if required) sold separately. Suitable mechanical fasteners should be sourced when installing. Tamper-proof fixings are recommended
Accessories: Internal corners; external corners; stop ends; butt strap joint covers; button vents (white); access hatches

Note: All MXM products are bespoke manufactured to project dimensions. Options also include perforations, recessed fixing points, material thickness and lengths.

Download product drawings and NBS Clauses

MXM dimensions: 2 sided ‘L’ shaped metal profiles – 2mm thick
Depth (mm) Height (mm) Thickness (mm) Internal space (mm) Length (m)
75 100 2 73 x 98 2.5 or 3.0
75 150 2 73 x 148 2.5 or 3.0
100 150 2 98 x 148 2.5 or 3.0
100 200 2 98 x 198 2.5 or 3.0
100 250 2 98 x 248 2.5 or 3.0
125 200 2 123 x 198 2.5 or 3.0
125 250 2 123 x 248 2.5 or 3.0
150 200 2 148 x 198 2.5 or 3.0
150 250 2 148 x 248 2.5 or 3.0
150 300 2 148 x 298 2.5 or 3.0
200 300 2 198 x 298 2.5 or 3.0
